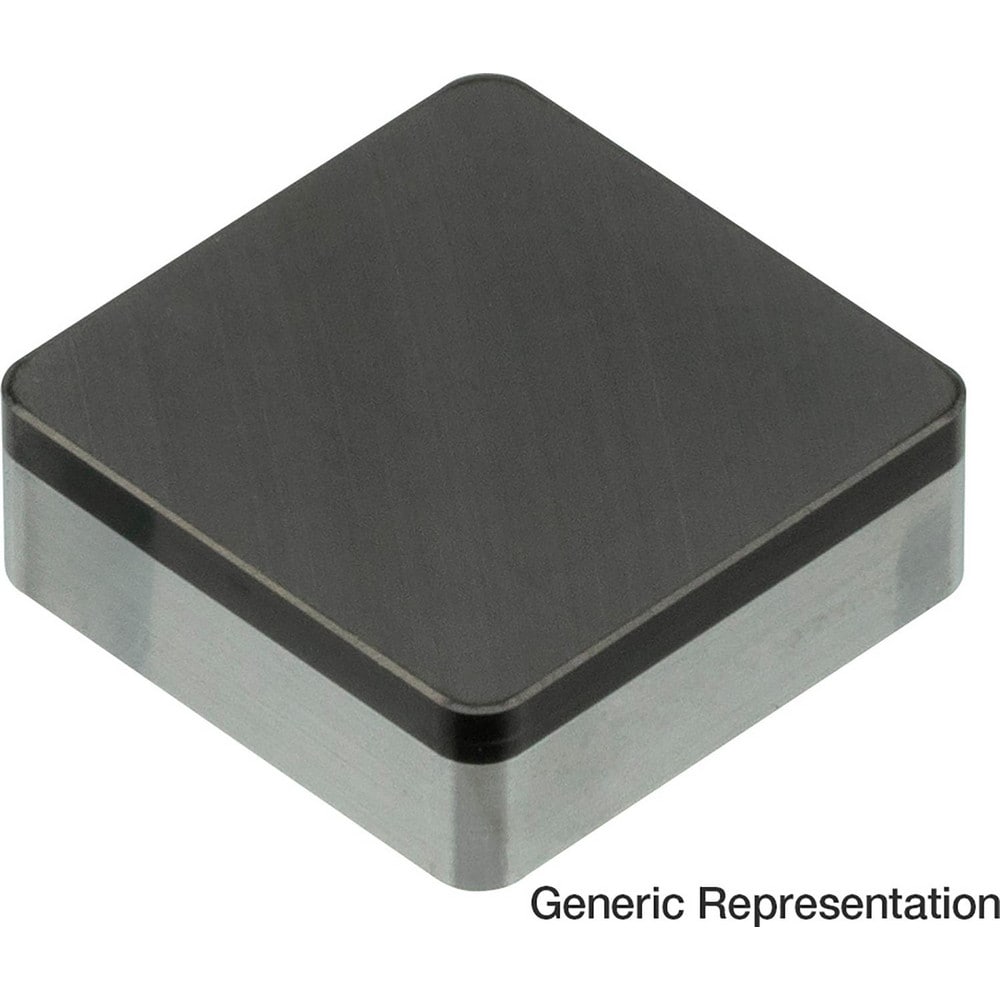

Brand: Sumitomo / Part #: 16JYEEC
Item #: 93290518
Brand: Sumitomo
Model #: 16JYEEC
Product Specifications
| Insert Style | SNG |
| Insert Shape Code | S |
| Insert Size Code | 322 |
| Insert Shape | Square |
| Coating/Finish | Uncoated |
| Manufacturer Grade | BN7000 |
| Corner Radius (mm) | 0.80 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 9.53 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Clearance Code | N |
| Tolerance Code | G |
| Relief Angle | 0.000 |
| Series | BN7000 |
| Manufacturers Catalog Number | SNG322B-BN7000 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 9.53 |
