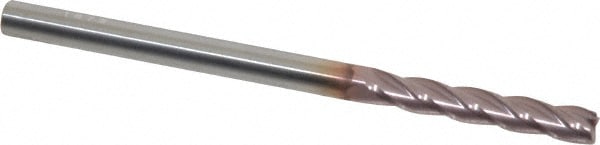

Brand: SGS / Part #: 31871
Item #: 06850002
Brand: SGS
Model #: 31871
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/16 |
| Finish/Coating | TiCN |
| Overall Length (Inch) | 3 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.1250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | +0.00000/-0.00032 in |
| Length Type | Extra Long |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Series | 1EL |
