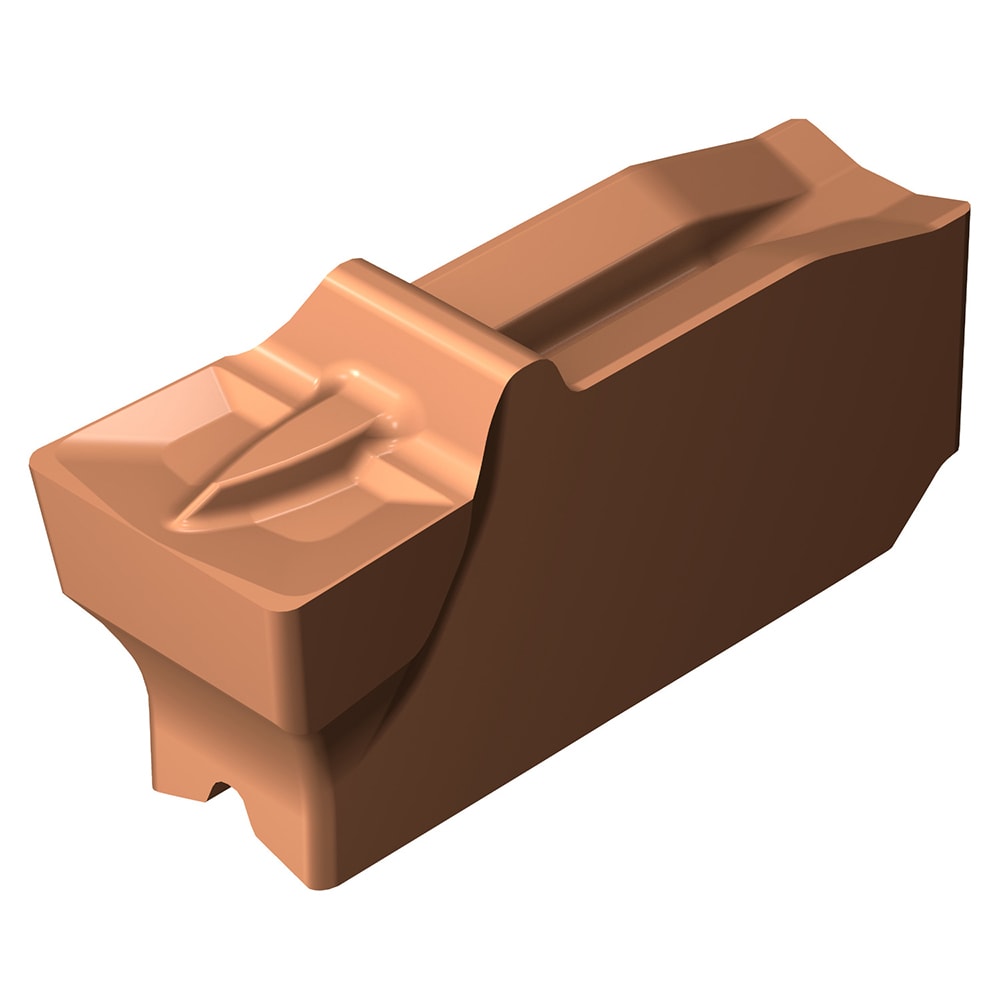

Brand: Sandvik Coromant / Part #: 7937600
Item #: 99000044
Brand: Sandvik Coromant
Model #: 7937600
Product Specifications
| Insert Style | QI-N |
| Insert Size Code | H |
| Insert Size | H |
| Insert Material | Carbide |
| Manufacturer Grade | 1145 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Lead Angle | 0.000 |
| Rake | Neutral |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | CoroCut? QI |
| Coating Process | PVD |
| Rake Angle | 0.000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | QI-NH-0400-0002-GF 1145 |
| Iso Code | QI-NH-0400-0002-GF 1145 |
| Manufacturers Catalog Number | QI-NH-0400-0002-GF 1145 |
| Chip Breaker | GF |
| Insert Seat Size | H |
| Coating/Finish | TiAlN/TiAlN |
| Number Of Cutting Edges | 1 |
