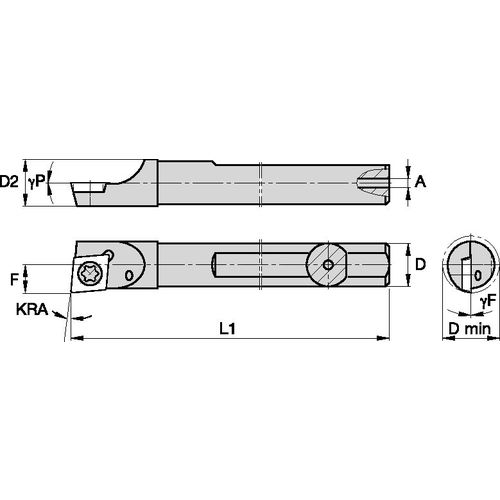

QSMI62565R STEEL SHANK GROOVING
Item #: WK212825394
Brand: Widia
Model #: 2825394
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (DMIN) | 0.67″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 6″ |
| Body Material | Steel |
| Head Length (LH) | 0.756″ |
| Series/List # | QSMI |
| Overall Length (OAL) | 6″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Shank Length (LS) | 5.244″ |
| Cutting Direction (HAND) | Right Hand |
| Neck Diameter (DN) | 0.67″ |
