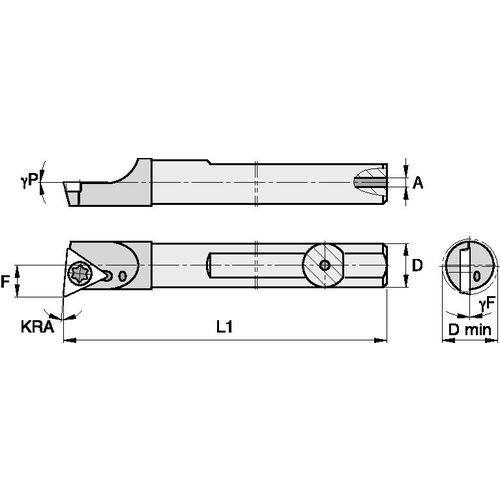

FCBI18745L CARBIDE SHANKBORING BAR
Item #: WK212830027
Brand: Widia
Model #: 2830027
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.187″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 4″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Overall Length (OAL) | 4″ |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 0.423″ |
| Minimum Bore Diameter_2 (DMIN_2) | 0.236″ |
| Shank Length (LS) | 3.577″ |
| Series/List # | FCBI |
| Master Insert Identification (MIID) | TD..130805 |
| Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.275″ |
| Height | 0.01″ |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Inch |
