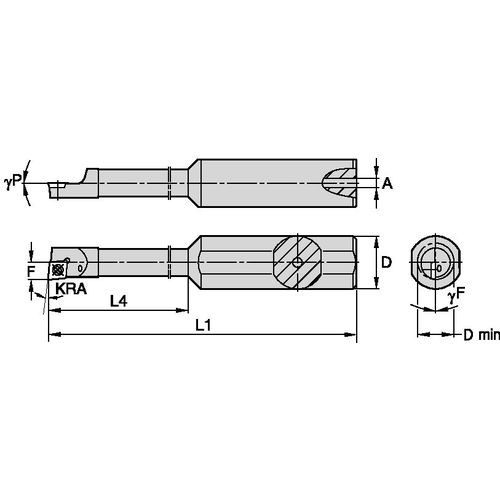

CCBI2505001250R CARBIDE SHANK STEP
Item #: WK213337598
Brand: Widia
Model #: 3337598
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2-3/4″ |
| Shank Type | Round |
| Reduced Body Diameter Length (LDRED) | 1-1/4″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Master Insert Identification (MIID) | Diamond 80 |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Minimum Bore Diameter (DMIN) | 0.292″ |
| Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
