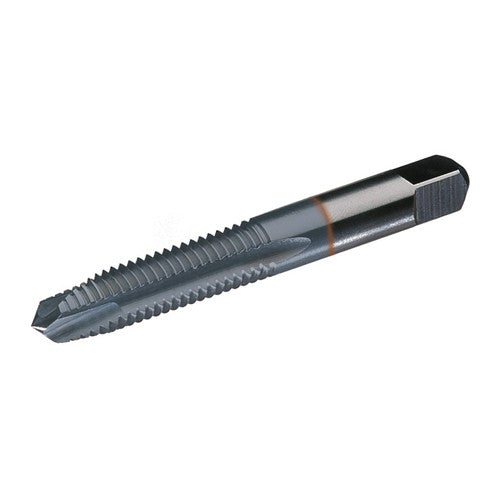

13241 5301 8-32NC H2 GUN TAP
Item #: WK302750202
Brand: Widia
Model #: 2750202
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Coating | Uncoated |
| Thread Size | #8 - 32 |
| Flute Count (NOF) | 2 |
| Thread Diameter Size (TDZ) | #8 |
| Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Thread Tolerance Class (TCTR) | H2 |
| Thread Cutting Part Length (THL) | 3/4″ |
| Overall Length (OAL) | 2-1/8″ |
| Style | Plug |
| Chamfer | 3P-5P |
| Coolant Supply Property (CSP) | External |
