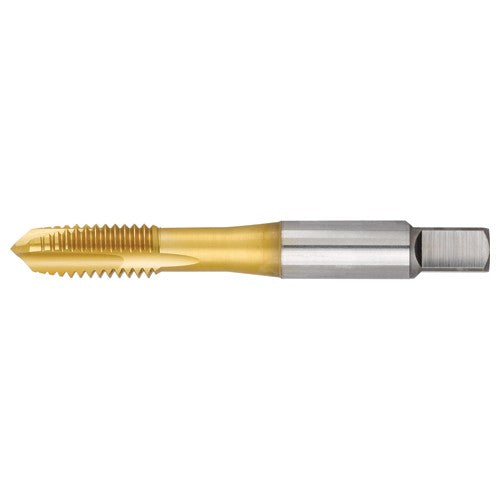

VTSPO5037 10-32 H3 2F
Item #: WK315365766
Brand: Widia
Model #: 5365766
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Flute Count (NOF) | 2 |
| Thread Size | #10 - 32 |
| Cutting Edge Material | HSSCo |
| Thread Diameter Size (TDZ) | #10 |
| Standard | ANSI |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Cutting Part Length (THL) | 1/2″ |
| Overall Length (OAL) | 2.36″ |
| Style | Plug |
| Chamfer | 3P-5P |
| Coolant Supply Property (CSP) | External |
| Coating | TiN |
