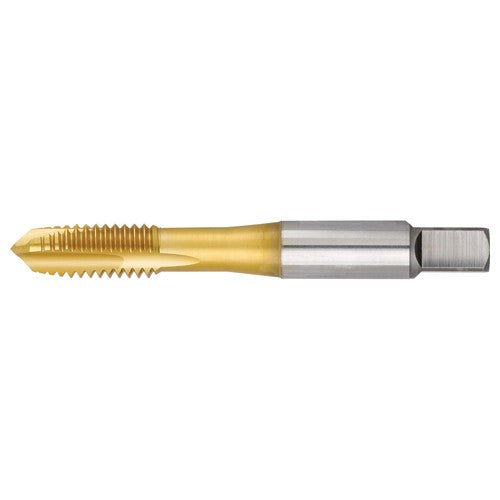

VTSPO5045 1/4-20 H3 3F PLUG VT-SPO
Item #: WK315365808
Brand: Widia
Model #: 5365808
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Flute Count (NOF) | 3 |
| Thread Size | 1/4″ - 20 |
| Cutting Edge Material | HSSCo |
| Thread Diameter Size (TDZ) | 1/4″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 20 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Cutting Part Length (THL) | 0.63″ |
| Overall Length (OAL) | 2-1/2″ |
| Style | Plug |
| Chamfer | 3P-5P |
| Coolant Supply Property (CSP) | External |
| Coating | TiN |
