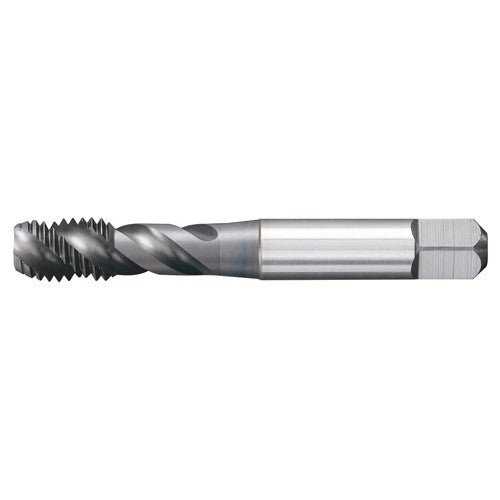

GT305060 1/2-20 3BX RHSF SBOTT
Item #: WK343955200
Brand: Widia
Model #: 3955200
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 20 |
| Standard | ANSI |
| Thread Standard | NF |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 3.38″ |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 0.77″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Measurement Type | Fractional |
| Cutting Edge Material | HSSCoPM |
