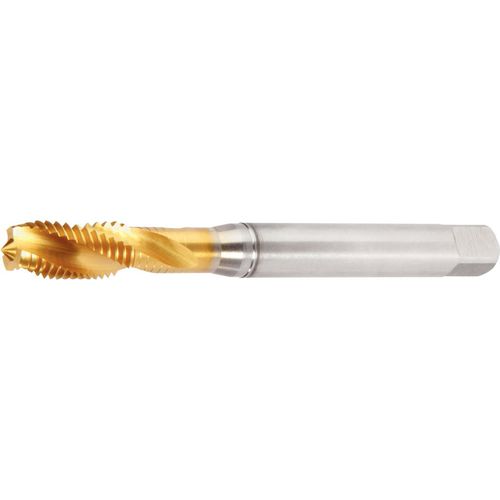

GT025012 M8X1 6H RHSF SBOT 374
Item #: WK344152709
Brand: Widia
Model #: 4152709
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Standard | DIN 374 |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 17 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 27 Degrees |
| Square Size | 4.9 mm |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E PM |
| Grade | WP31MG |
| Thread Tolerance Class (TCTR) | 6H |
| Series/List # | GT |
