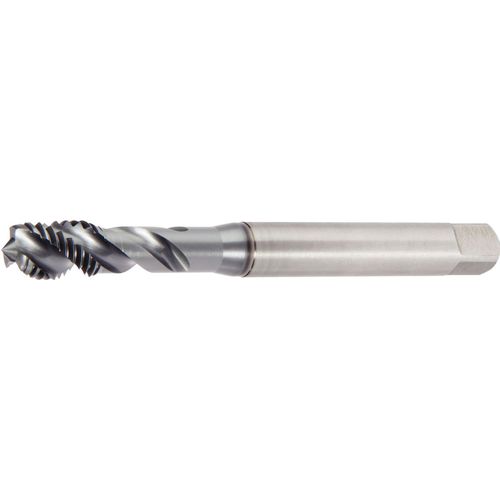

GT045006 M10X1.5 6H RHSF SBOT 371
Item #: WK344158766
Brand: Widia
Model #: 4158766
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Standard | DIN 371 |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 16 mm |
| Style | Semi-Bottoming |
| Usable Length (LU) | 39 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Square Size | 8 mm |
| Flute Helix Angle (FHA) | 42 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel |
| Grade | WH36MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 6H |
