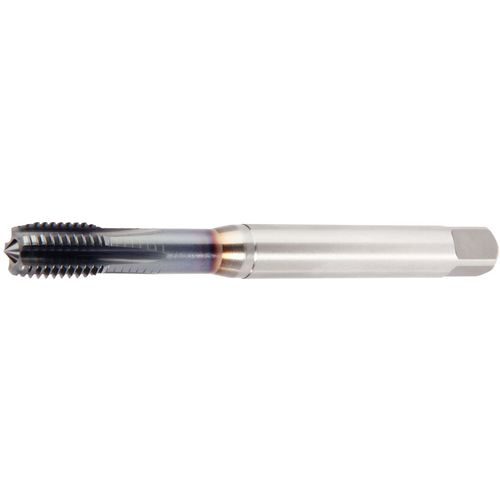

GT065009 M14X1.5 6HX STFL 374
Item #: WK344159921
Brand: Widia
Model #: 4159921
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M14 |
| Standard | DIN374 |
| Thread Pitch (TP) | 1.5 mm |
| Chamfer | 3P-5P |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 100 mm |
| Style | Plug |
| Thread Cutting Part Length (THL) | 15 mm |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 6 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 9 mm |
| Applicable Material | Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
| Thread Size | M14 × 1.5 |
| Thread Tolerance Class (TCTR) | 6HX |
