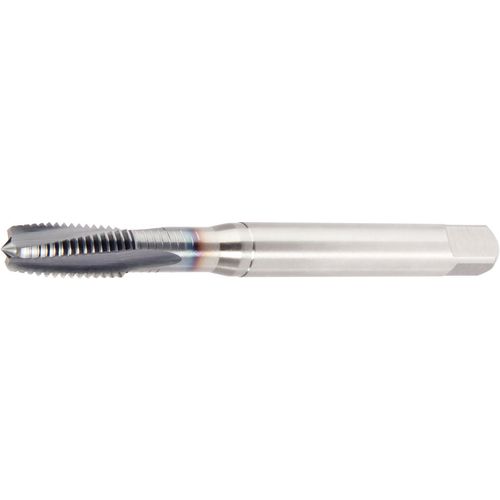

GT105004 M6X1 6HX LH SF PLUG 371
Item #: WK344160103
Brand: Widia
Model #: 4160103
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Standard | DIN 371 |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 80 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 17 mm |
| Style | Plug |
| Usable Length (LU) | 30 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Square Size | 4.9 mm |
| Flute Helix Angle (FHA) | 12 Degrees |
| Measurement Type | Metric |
| Applicable Material | Super-Alloys / Titanium |
| Grade | WS32MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 6HX |
