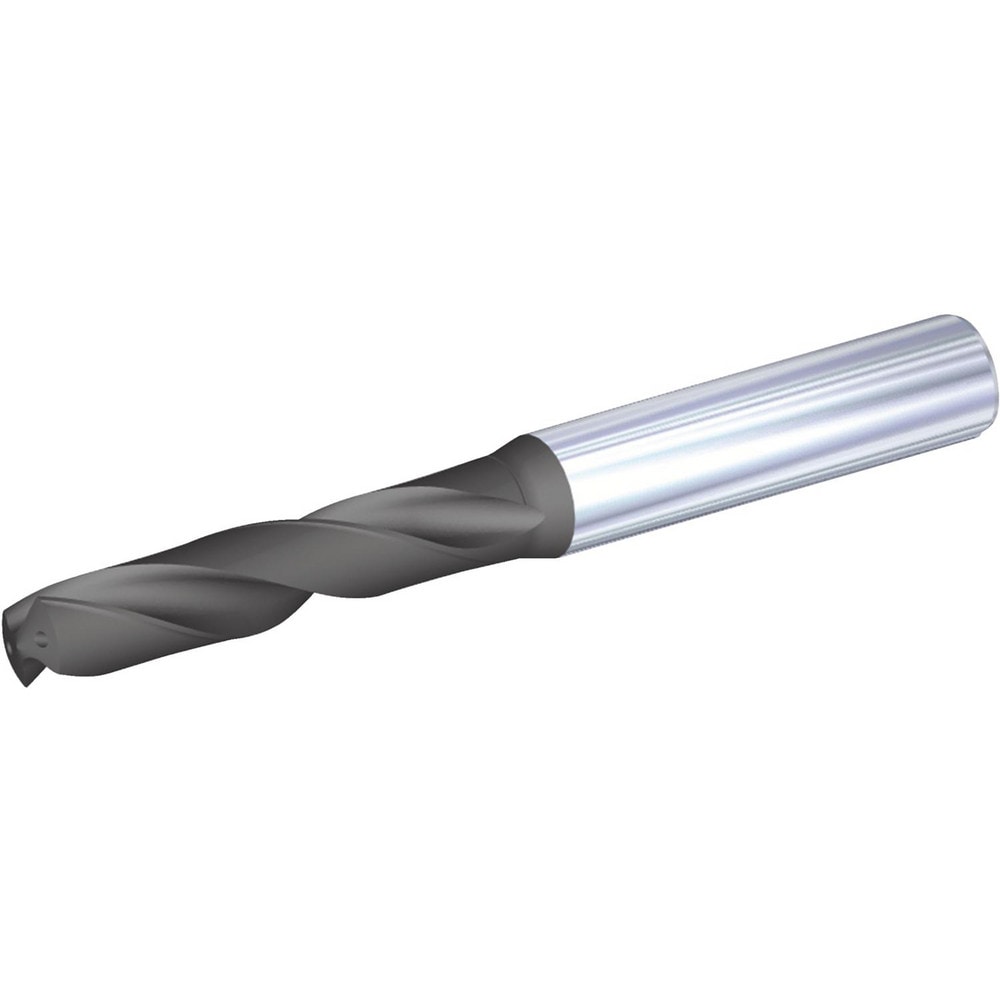

Brand: Widia / Part #: 4163547
Item #: 08985335
Brand: Widia
Model #: 4163547
Product Specifications
| Drill Bit Size (mm) | 9.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Thinned |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (mm) | 89.0000 |
| Shank Diameter (mm) | 10.0000 |
| Series | TDS401 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (mm) | 40.000 |
| Drill Point Length (mm) | 1.53 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Heavy-Duty |
| Drill Bit Diameter Tolerance | 0.006/0.021 mm |
| Flute Length (mm) | 47.00 |
| Drill Bit Grade | High Performance |
| Material Grade | Carbide |
