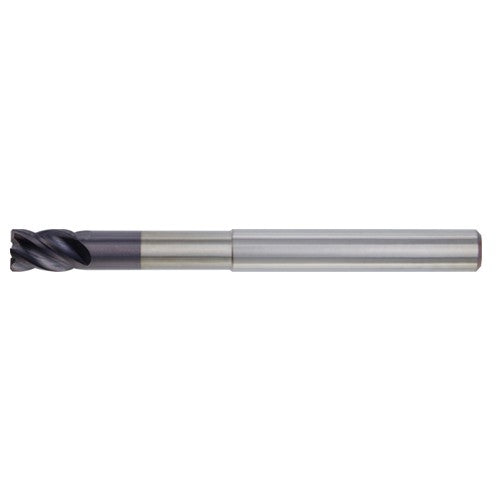

SC FIN 4FL 1X1X1.1/8X3.1/4X5.1/2
Item #: WK402837117
Brand: Widia
Model #: 2837117
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Usable Length (LU) | 3-1/4″ |
| Overall Length (OAL) | 5-1/2″ |
| Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | Carbide |
| Grade | TIALN-LW |
| Coating | AlTiN |
| Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 |
| Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | CW|38 Degrees |
| Decimal Equivalent | 1″ |
