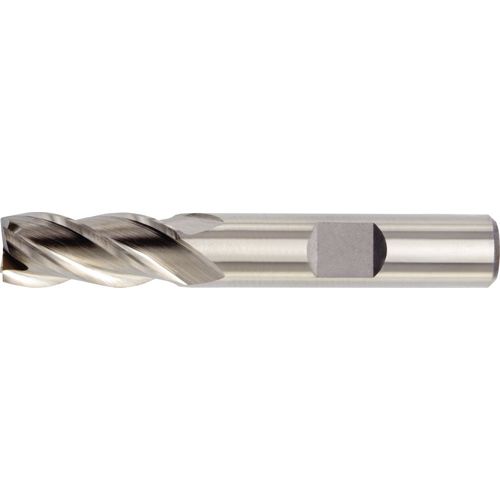

1X1X3X5.1/2 M42 FIN 6FL EM
Item #: WK402865982
Brand: Widia
Model #: 2865982
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Usable Length (LU) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Tool Type | Non-Center Cutting|Single-End |
| Depth of Cut Maximum (APMX) | 3″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 5-1/2″ |
| Style | Finishing |
| Cutting Edge Material | HSSCo |
| Decimal Equivalent | 1″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 6 |
| Series/List # | 3405 | 3407 |
| Flute Helix Angle (FHA) | 35 Degrees |
| Shank Length (LS) | 2.492″ |
| Shank Type | Weldon | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Square |
| Single / Double End | Single End |
