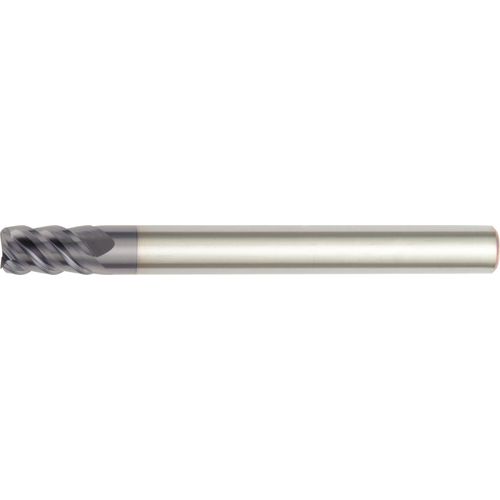

1X1X3.1/2X6 SC FIN 6FL CARB EM
Item #: WK403104294
Brand: Widia
Model #: 3104294
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Usable Length (LU) | 3-1/2″ |
| Depth of Cut Maximum (APMX) | 3-1/2″ |
| Applicable Material | Stainless Steel | Hard Materials |
| Overall Length (OAL) | 6″ |
| Grade | ALTIN-MT1 |
| Cutting Edge Material | Carbide |
| Tool Type | Non-Center Cutting|Single-End |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 6 |
| Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | 50 Degrees|CW |
| Decimal Equivalent | 1″ |
| Shank Type | Round |
