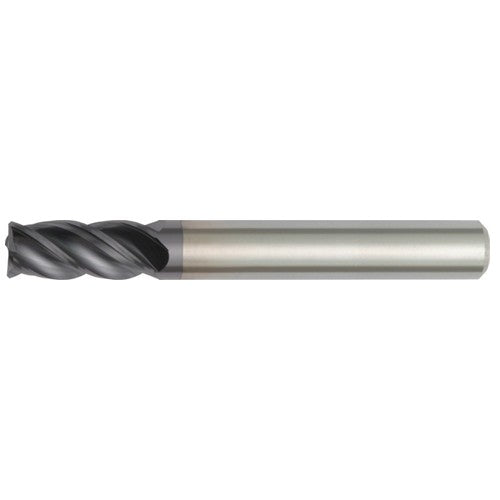

1/2X1/2X1.1/4X3 R.030
Item #: WK403124547
Brand: Widia
Model #: 3124547
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Usable Length (LU) | 1-1/4″ |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Grade | TIALN-LW |
| Coating | AlTiN |
| Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 |
| Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | CW|38 Degrees |
| Decimal Equivalent | 0.5″ |
