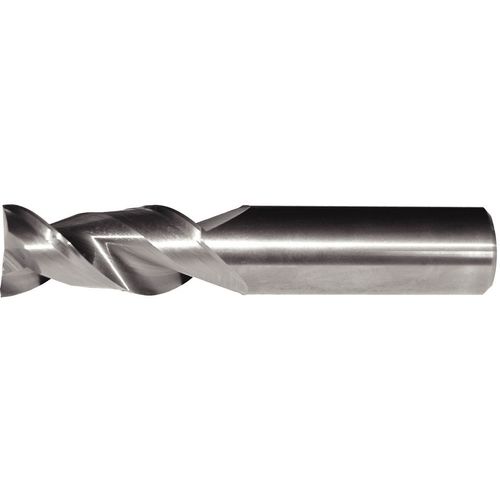

5/16X5/16X5/8X2.1/2 .03 2FL EM CARB
Item #: WK403336101
Brand: Widia
Model #: 3336101
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 2-1/2″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Tool Type | Center Cut|Single-End |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 45 Degrees|CW |
| Decimal Equivalent | 0.3125″ |
| Shank Type | Round |
