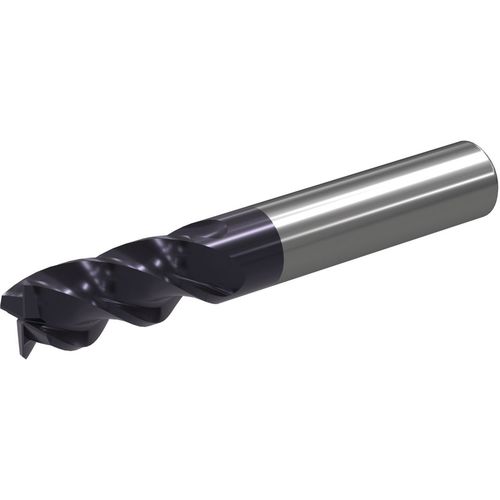

EM W401 8X8X19X63 CH0 4
Item #: WK406945550
Brand: Widia
Model #: 6945550
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Corner Chamfer Width (CHW) | 0.4 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Grade | WU20PE |
| Depth of Cut Maximum (APMX) | 19 mm |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 63 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Style | Finishing |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | W401 |
| Shank Type | Straight | Cylindrical |
| Shank Length (LS) | 38.6 mm |
| End Shape | Chamfer |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.0157″ |
| Center Cutting | Yes |
