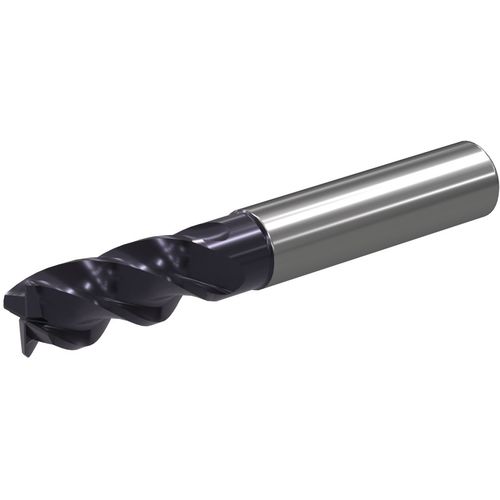

EM W4N1 8X8X19X63 R1 0
Item #: WK406945641
Brand: Widia
Model #: 6945641
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Corner Chamfer Width (CHW) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Grade | WU20PE |
| Depth of Cut Maximum (APMX) | 19 mm |
| Neck Diameter (DN) | 7.52 mm |
| Overall Length (OAL) | 63 mm |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Style | Finishing |
| Flute Helix Angle (FHA) | 37 Degrees |
| Measurement Type | Metric |
| Shank Type | Straight | Cylindrical |
| Series/List # | W4N1 |
| End Shape | Radius |
| Shank Length (LS) | 35.76 mm |
| Usable Length (LU) | 27 mm |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.0394″ |
| Center Cutting | Yes |
