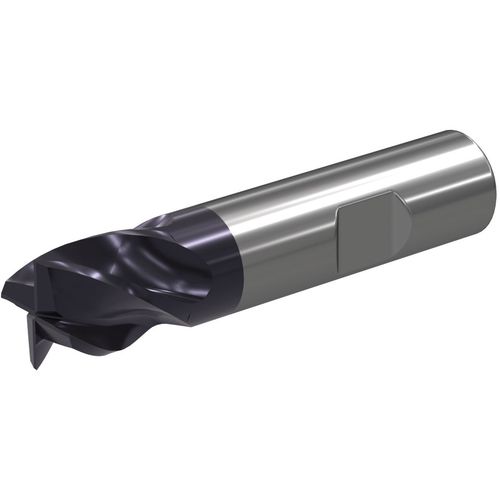

W401 5/8X5/8X3/4X3 SHARP
Item #: WK406945698
Brand: Widia
Model #: 6945698
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Body Material | Carbide |
| Overall Length (OAL) | 3″ |
| Style | Finishing |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.625″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | W401 |
| Flute Helix Angle (FHA) | 37 Degrees |
| Shank Length (LS) | 2.0591″ |
| Shank Type | Weldon | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Square |
| Single / Double End | Single End |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Center Cutting | Yes |
| Grade | WU20PE |
