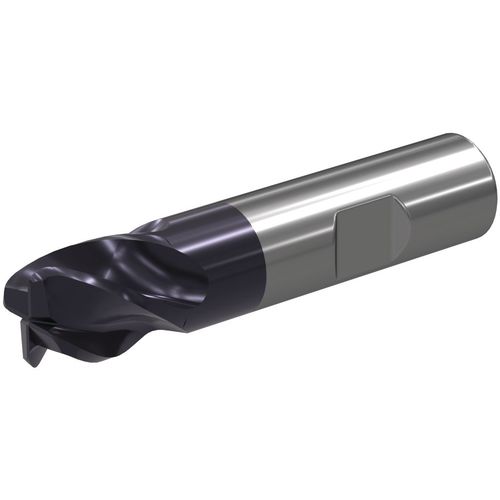

EM W421 1X1X3X6 R.030
Item #: WK406945878
Brand: Widia
Model #: 6945878
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Corner Chamfer Width (CHW) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Grade | WU20PE |
| Depth of Cut Maximum (APMX) | 3″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 6″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Style | Finishing |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37.5 Degrees |
| Series/List # | W421_L |
| Shank Type | Weldon | Cylindrical |
| Shank Length (LS) | 2.748″ |
| End Shape | Radius |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.03″ |
| Center Cutting | Yes |
