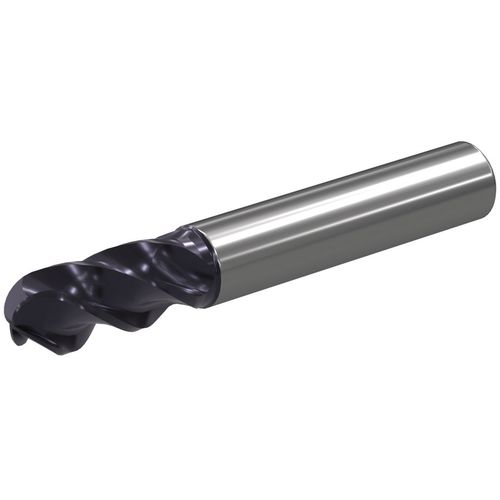

EM W4NB 5X6X13X57 BN
Item #: WK406945882
Brand: Widia
Model #: 6945882
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5 mm |
| Neck Diameter (DN) | 4.7 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Grade | WU20PE |
| Depth of Cut Maximum (APMX) | 13 mm |
| Tool Type | End Mill |
| Overall Length (OAL) | 57 mm |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | W4NB |
| Shank Type | Straight | Cylindrical |
| Shank Length (LS) | 36.57 mm |
| Usable Length (LU) | 18 mm |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Center Cutting | Yes |
| Application | Finishing |
| Single / Double End | Single End |
| Corner Radius (RE) | 2.5 mm |
