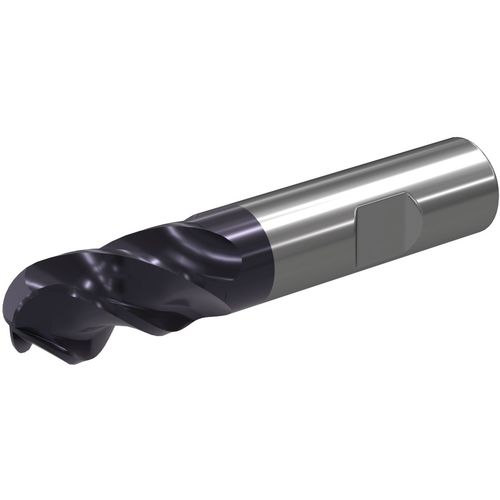

EM W40B 1/2X1/2X1X3 BN
Item #: WK406945911
Brand: Widia
Model #: 6945911
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Grade | WU20PE |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 1″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 3″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | W40B |
| Shank Type | Weldon |
| Shank Length (LS) | 1.665″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Cutting Direction (HAND) | Right Hand |
| Application | Finishing |
| Center Cutting | Yes |
| Corner Radius (RE) | 1/4″ |
| Single / Double End | Single End |
