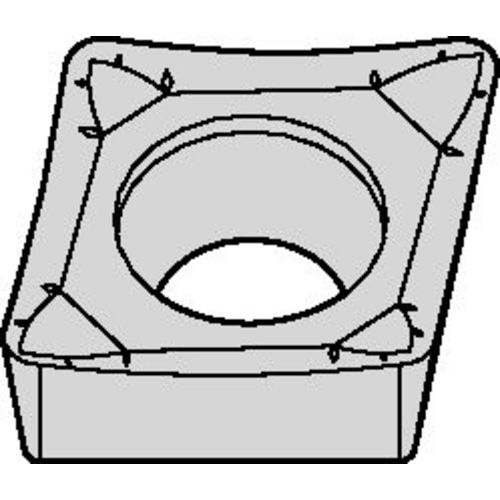

CCGT 09T302 Single-sided|T HWK15, 0.008″ Corner Radius, 0.156″ Thick, 3/8″ Inscribed Circle, Uncoated, Turning Indexable Insert
Item #: WK502022854
Brand: Widia
Model #: 2022854
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Grade | HWK15 |
| Corner Radius (RE) | 0.008″ |
| Tool Type | Turning Insert |
| Insert Size | 09T302 |
| Fixing Hole Diameter (D1) | 0.173″ |
| Cutting Edge Length (L) | 0.381″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ |
| Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | Single-sided|T |
| Coating | Uncoated |
