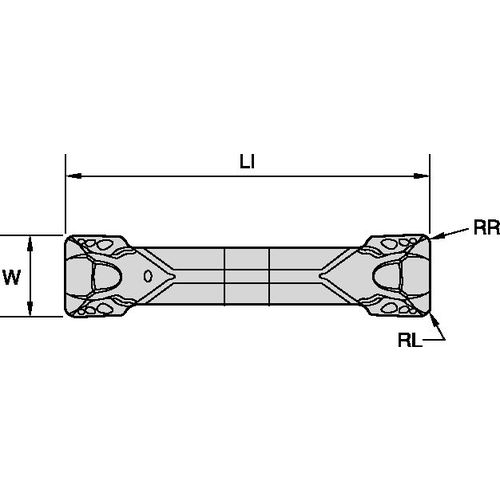

WMTS500M5P03PT WU10PT INSERT
Item #: WK504116143
Brand: Widia
Model #: 4116143
| Product Specifications | |
|---|---|
| Insert Style | WMTS |
| Grade | WU10PT |
| Corner Radius (RE) | 0.3 mm |
| Tool Type | Cut-Off Insert|Grooving Insert |
| Cutting Edge Length (L) | 28.63 mm |
| Clearance Angle Major (AN) | 1.5 Degrees |
| Insert Thickness (S) | 6.14 mm |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | Hi-Double Positive|S |
| Coating | AlTiN |
