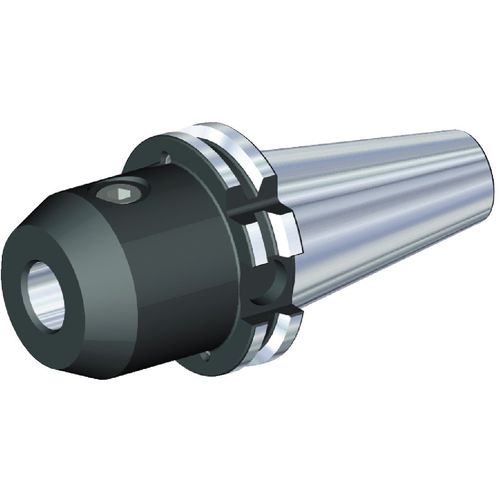

BT50BWN18080M CHUCK DIN1835 WN BT50B 18
Item #: WK521137543
Brand: Widia
Model #: 1137543
| Product Specifications | |
|---|---|
| Connection Size (CSI) | #50 |
| Overall Length (OAL) | 181.8 mm |
| Shank Type | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 18 mm |
| Nose Length | 42 mm |
| Body Diameter (BD) | 49.5 mm |
| Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 100 mm |
| Thread Size | M24 |
| Body Length Maximum (LBX) | 80 mm |
| Series/List # | BT50 |
| Protruding Length (LPR) | 80 mm |
