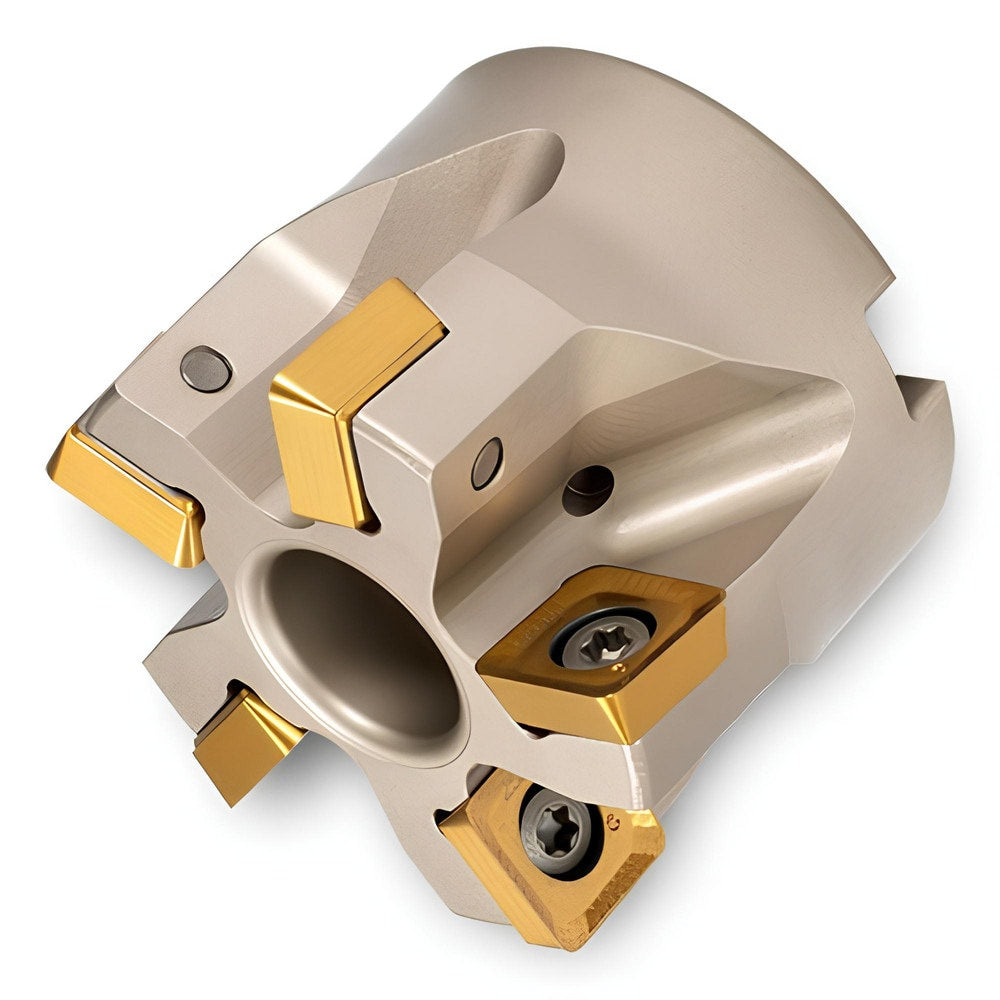

Brand: Ingersoll Cutting Tools / Part #: 2904790
Item #: 14401814
Brand: Ingersoll Cutting Tools
Model #: 2904790
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4400 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 92.300 |
| Compatible Insert Size Code | 1305 |
| Cutter Style | QHU |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | QHU |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (Inch) | 5/16 |
| Overall Height (Mm - 5 Decimals) | 39.88000 |
| Overall Height (Decimal Inch) | 1.5700 |
| Pitch Type | Normal |
| Tool Application | Plunging |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SDxS1305.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | QHU-25015D1R01 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
