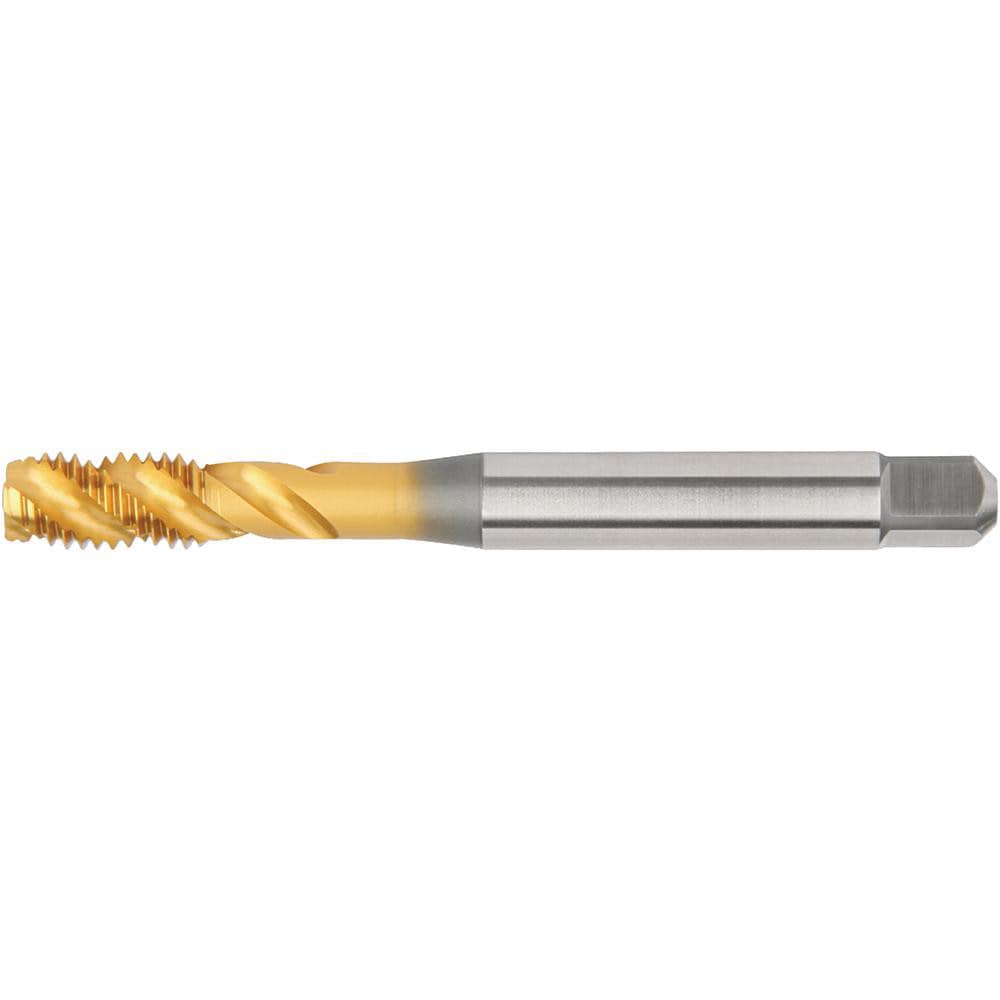

Brand: Widia / Part #: 6172916
Item #: 97475016
Brand: Widia
Model #: 6172916
Product Specifications
| Thread Size (Inch) | 3/4-16 |
| Chamfer | Modified Bottoming |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 16 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.6700 |
| Overall Length (Decimal Inch) | 4.3300 |
| Thread Depth (Decimal Inch) | 2.1700 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Square Size (Decimal Inch) | 0.4330 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
