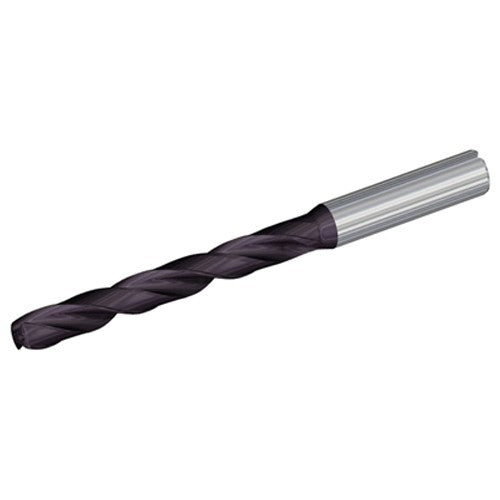

5/8″ Dia. × 0.63″ Shank × 8.86″ Flute Length × 10.91″ OAL, 12xD, TiAlN, 2xD Flute, Coolant Thru, 3MT Solid Carbide Drill
Item #: WK534173533
Brand: Widia
Model #: 4173533
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ |
| Shape | Taper Shank |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.625″ |
| Tool Type | Taper Shank |
| Length Group | 12xD |
| Grade | WU20PD |
| Coating | TiAlN |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Usable Length (LU) | 7.56″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 8.86″ |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 10.91″ |
| Shank Type | 3MT |
