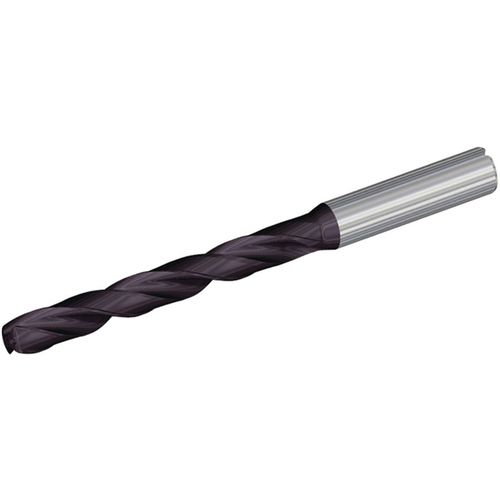

11/16″ Dia. × 0.709″ Shank × 9.92″ Flute Length × 12.01″ OAL, 132°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK534173537
Brand: Widia
Model #: 4173537
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11/16″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 11/16″ |
| Shape | Center Cut |
| Decimal Equivalent | 0.6875″ |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Grade | WU20PD |
| Connection Diameter Machine Side (DCONMS) | 0.709″ |
| Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 8.46″ |
| Point Angle (SIG) | 132 Degrees |
| Length Chip Flute (LCF) | 9.92″ |
| Flute Helix Angle (FHA) | 28.8 Degrees |
| Overall Length (OAL) | 12.01″ |
