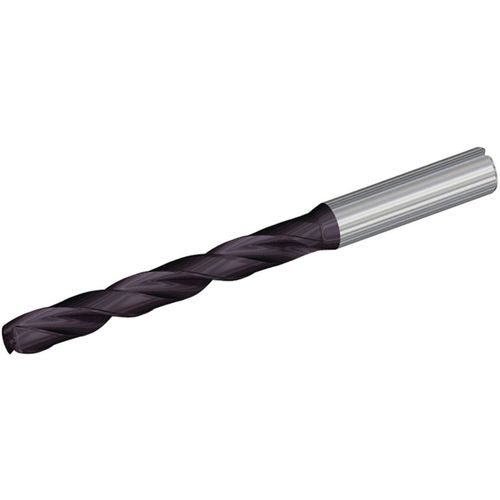

18 mm Dia. × 18 mm Shank × 253 mm Flute Length × 305 mm OAL, 132°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK534173539
Brand: Widia
Model #: 4173539
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 18 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.7087″ |
| Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Grade | WU20PD |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 216 mm |
| Point Angle (SIG) | 132 Degrees |
| Length Chip Flute (LCF) | 253 mm |
| Flute Helix Angle (FHA) | 29.5 Degrees |
| Overall Length (OAL) | 305 mm |
