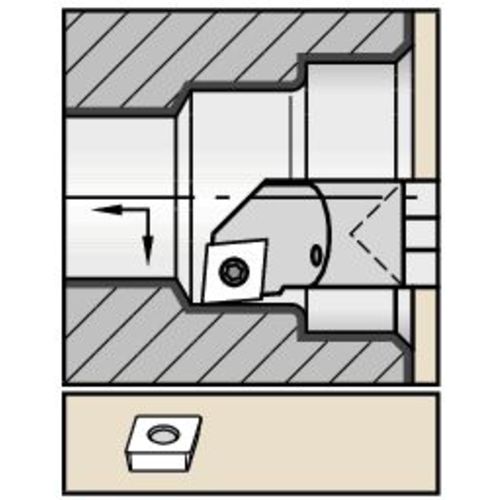

E08RSCLPL2 WG BORING BAR
Item #: WK535093095
Brand: Widia
Model #: 5093095
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 8″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 8″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 0.93″ |
| Rake Angle Radial (GAMF) | -2 Degrees |
| Shank Length (LS) | 6.998″ |
| Body Material | Carbide |
| Master Insert Identification (MIID) | CP..2151 |
| Height | 0.008″ |
| Minimum Bore Diameter (DMIN) | 0.6″ |
| Measurement Type | Inch |
