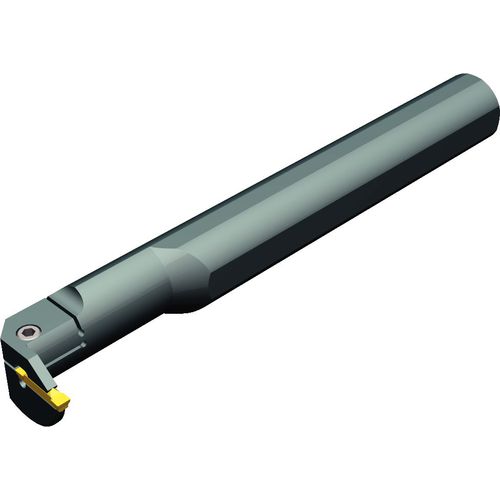

A16RWMTEL0316N W BORING BAR
Item #: WK535423846
Brand: Widia
Model #: 5423846
| Product Specifications | |
|---|---|
| Cutting Width Maximum (CWX) | 1/8″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.63″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.59″ |
| Series/List # | WMT |
| Functional Length (LF) | 8″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 8″ |
| Neck Diameter (DN) | 1.59″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Insert Seat Size Code (SSC) | 3 |
| Cutting Direction (HAND) | Left Hand |
