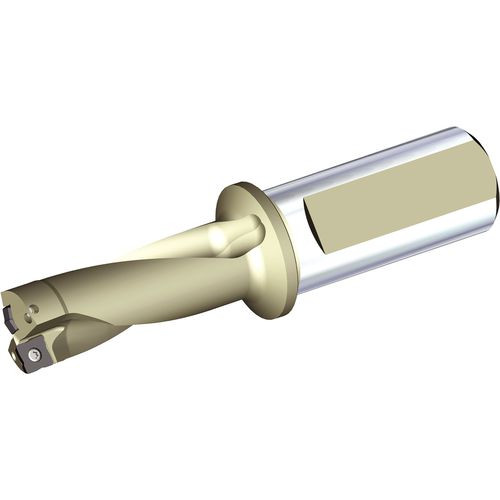

TCF0969R2SSF100D DIA .969IN 2XD
Item #: WK535537845
Brand: Widia
Model #: 5537845
| Product Specifications | |
|---|---|
| Usable Length (LU) | 1.973″ |
| Cutting Diameter Minimum (DCN) | 31/32″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Diameter Maximum (DCX) | 1.008″ |
| Shank Type | Round |
| Point Length (PL) | 0.035″ |
| Protruding Length (LPR) | 3.1″ |
| Measurement Type | Inch |
| Shank Length (LS) | 2.205″ |
| Length Group | 2D |
| Functional Length (LF) | 3.065″ |
| Flute Type | Helical |
| Overall Length (OAL) | 5.305″ |
| Helix Angle | 20Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Body Diameter | 1.256″ |
| Cutting Item Count (CICT) | 2 |
