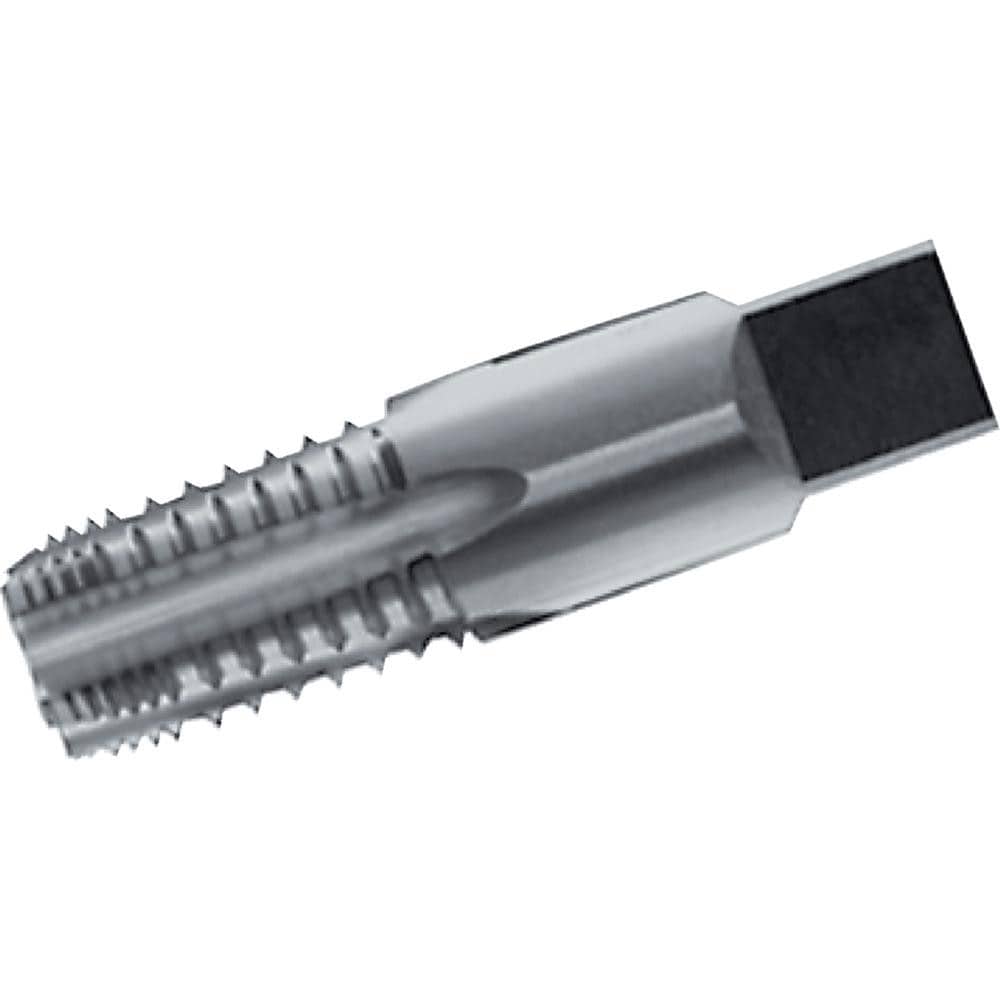

Brand: Widia / Part #: 2746423
Item #: 90232208
Brand: Widia
Model #: 2746423
Product Specifications
| Thread Standard | NPT |
| Material | High Speed Steel |
| Overall Length (Inch) | 2-9/16 |
| Threads per Inch | 18 |
| Thread Size (Inch) | 3/8-18 |
| Application | Metal |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Size (Decimal Inch) | 0.5310 |
| Chamfer | Plug |
| Series | 5319 |
| Thread Length (Decimal Inch) | 1.0625 |
| Coating/Finish | Oxide |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Square Length (Decimal Inch) | 0.5000 |
| Thread Depth (Decimal Inch) | 1.0625 |
| Number Of Flutes | 5 |
