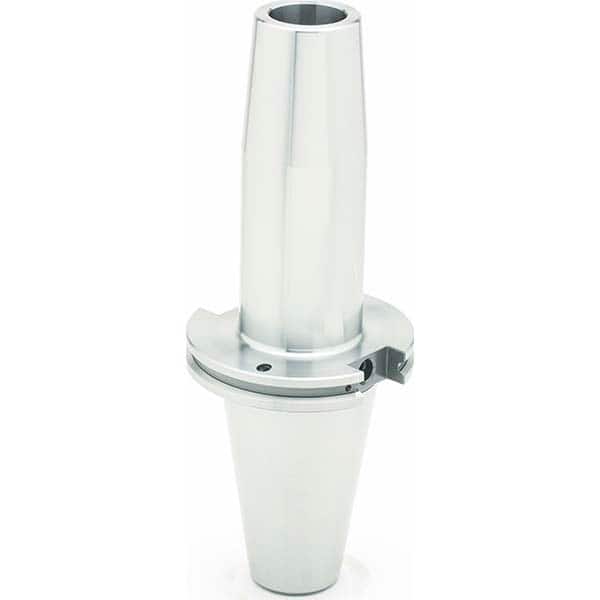

Parlec - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: CAT50
Item #: 10339414
Brand: Parlec
Model #: C50F-12SHD600-9
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: CAT50 ; Hole Diameter (Inch): 1-1/4 ; Projection (Decimal Inch): 4.0000 ; Nose Diameter (Decimal Inch): 1.7300 ; Through Coolant: Yes
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1-1/4 |
| Projection (Decimal Inch) | 4.0000 |
| Nose Diameter (Decimal Inch) | 1.7300 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.4400 |
| Overall Length (Decimal Inch) | 10.00000 |
| Balanced to (RPM) | 25000 |
| Additional Information | with Coolant Ports |
| TIR (mm) | 0.0030 |
