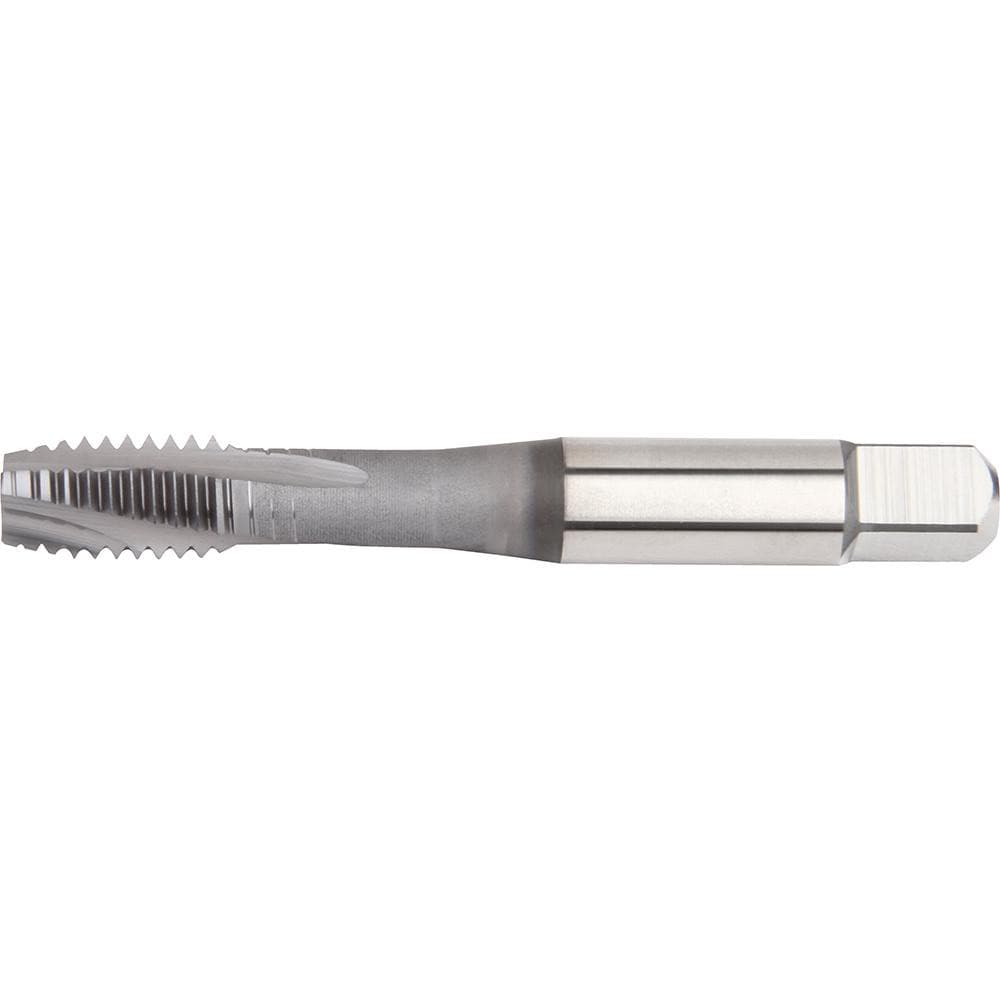

Brand: Widia / Part #: 5708327
Item #: 16544173
Brand: Widia
Model #: 5708327
Product Specifications
| Thread Size (mm) | M12x1.75 |
| Chamfer | Plug |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 15 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide; Nitride |
| Thread Depth (mm) | 44.20 |
| Coolant Through | No |
| Thread Length (mm) | 19.60 |
| Overall Length (mm) | 85.9000 |
| Thread Pitch (mm) | 1.75 |
| Thread Standard | Metric |
| Material Grade | WS39MG |
| Shank Diameter (mm) | 9.3200 |
| Square Length (mm) | 11.20 |
| Square Size (mm) | 6.91 |
| Material Application | High-Temperature Alloy |
| Series | GT92 |
