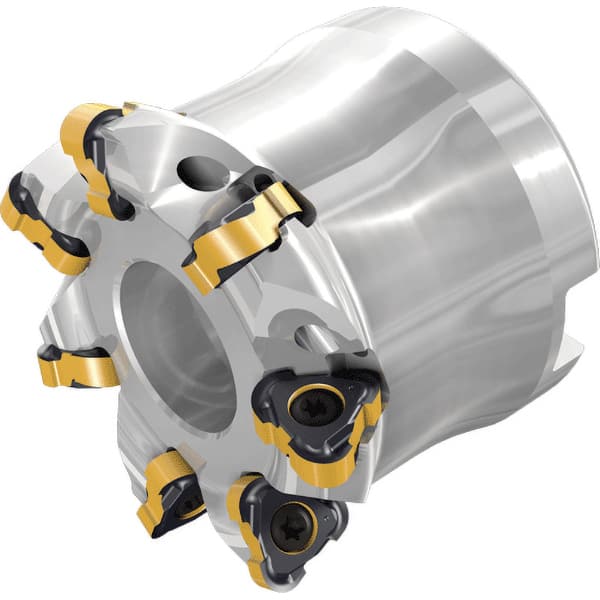

Iscar - Indexable Copy Face Mills Cutting Diameter (mm): 35.00 Cutting Diameter (Decimal Inch): 1.3770
Item #: 15110356
Brand: Iscar
Model #: 3344365
Product Specifications
Indexable Copy Face Mills; Cutting Diameter (mm): 35.00 ; Cutting Diameter (Decimal Inch): 1.3770 ; Maximum Depth of Cut (mm): 2.50 ; Maximum Depth of Cut (Decimal Inch): 0.0980 ; Arbor Hole Diameter (mm): 16.00 ; Arbor Hole Diameter (Decimal Inch): 0.6290
| Cutting Diameter (mm) | 35.00 |
| Cutting Diameter (Decimal Inch) | 1.3770 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6290 |
| Overall Height (mm) | 37.00000 |
| Overall Height (Decimal Inch) | 1.4560 |
| Series | TR6 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | TR |
| Cutter Style | TOR6MILL |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.2590 |
| Hub Diameter (mm) | 32.000 |
| Overall Diameter (Decimal Inch) | 1.2590 |
| Overall Diameter (mm) | 32.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5740 |
