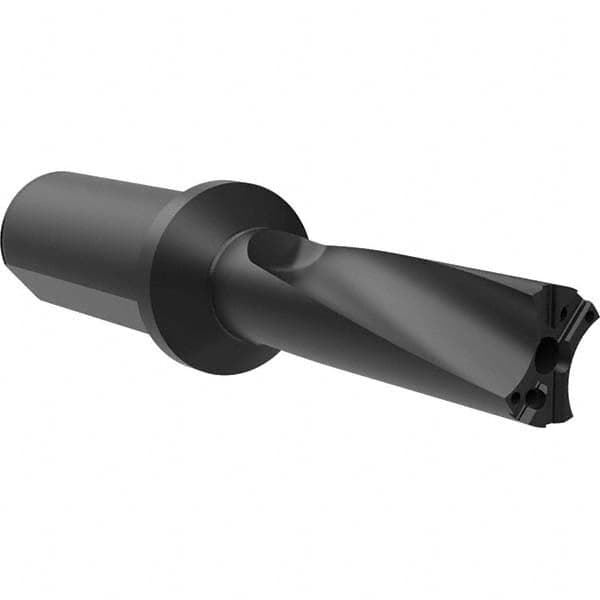

Allied Machine and Engineering - Drill Bodies Series: APX 33 Head Connection Size: 33
Item #: 16975815
Brand: Allied Machine and Engineering
Model #: W3303H-150F
Product Specifications
Drill Bodies; Series: APX 33 ; Head Connection Size: 33 ; Drill Depth by Diameter Ratio: 3xD ; Shank Taper Size: Flanged ; Shank Diameter (Inch): 1-1/2 ; Drill Body Length to Flange (Decimal Inch): 6.5900
| Series | APX 33 |
| Head Connection Size | 33 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Taper Size | Flanged |
| Shank Diameter (Inch) | 1-1/2 |
| Drill Body Length to Flange (Decimal Inch) | 6.5900 |
| Toolholder Style | Flanged Straight |
| Nose Diameter (mm) | 37.99 |
| Nose Diameter (Decimal Inch) | 1.4960 |
| Overall Length (Decimal Inch) | 9.2800 |
| Gage Length (Decimal Inch) | 6.5900 |
| Shank Length (Decimal Inch) | 2.6875 |
| Through Coolant | Through Coolant ;Yes |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/4 |
