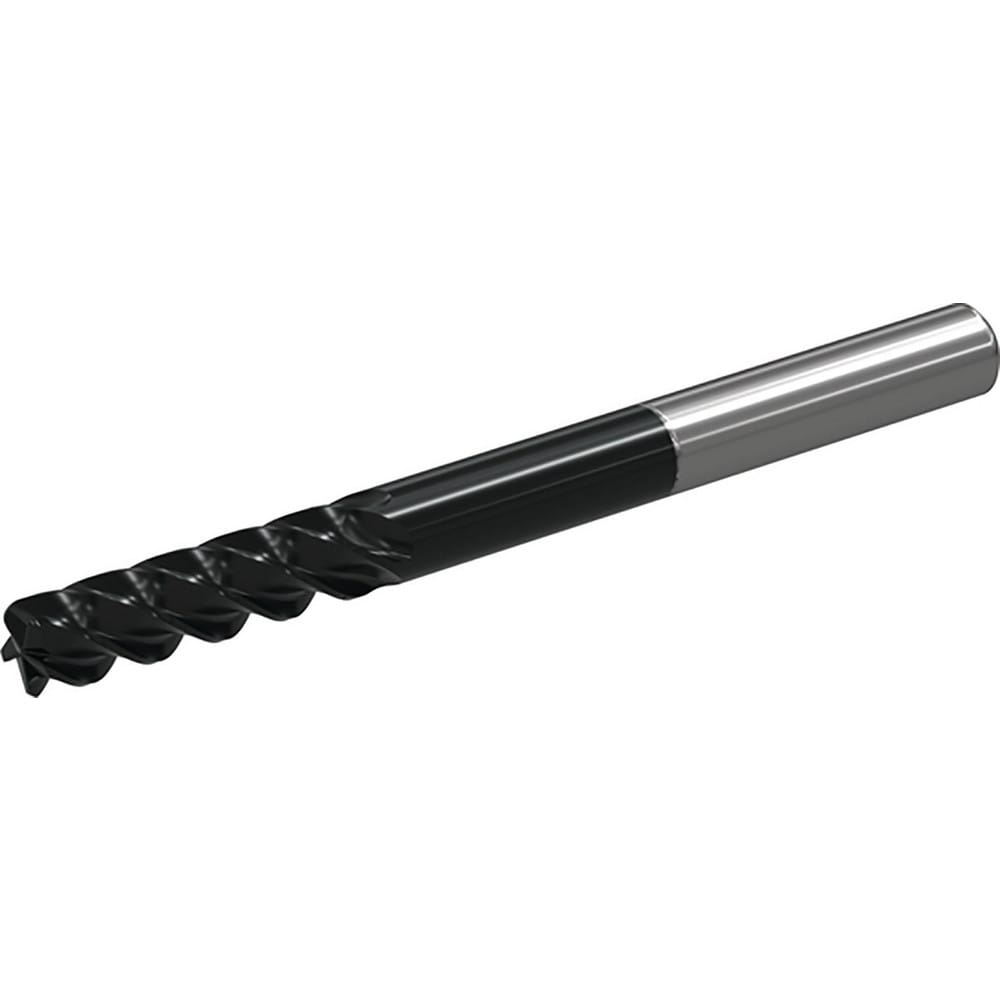

Brand: Widia / Part #: 7008489
Item #: 67790279
Brand: Widia
Model #: 7008489
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single End |
| Overall Length (Inch) | 2-1/4 |
| Length of Cut (Inch) | 5/8 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 3/16 |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Series | WCE5 |
| Material Application | High-Temperature Alloy; Stainless Steel; Cast Iron; Steel; Hardened Steel |
| Helix Style | Variable |
| Manufacturers Catalog Number | W501E05001RET WU20PE |
