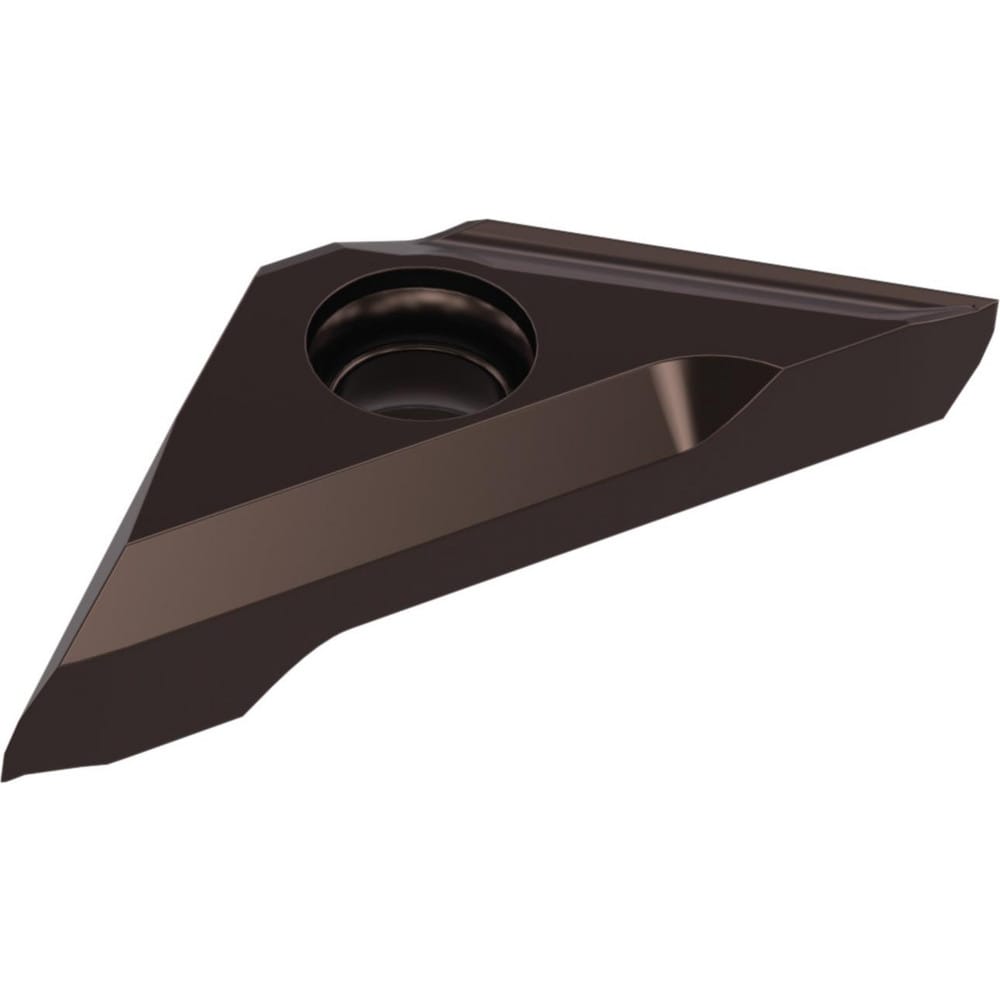

Brand: Widia / Part #: 5983706
Item #: 96821061
Brand: Widia
Model #: 5983706
Product Specifications
| Insert Style | VXGX |
| Insert Size Code | 100302 |
| Insert Material | Carbide |
| Insert Thickness | 0.1370 in |
| Insert Shape | Triangle |
| Manufacturer Grade | WP20PH |
| Inscribed Circle | 0.2500 in |
| Chamfer Angle | 45.000 |
| Corner Radius | 0.0000 in |
| Chipbreaker | X |
| Series | TopSTEP VG |
| Coated | Coated |
| Coating | TiAlN |
| Coating Process | PVD |
| Hole Diameter | 0.1120 |
| Overall Width | 0 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Ansi Code | VXGX10030234 |
| Iso Code | VXGX10030234 |
