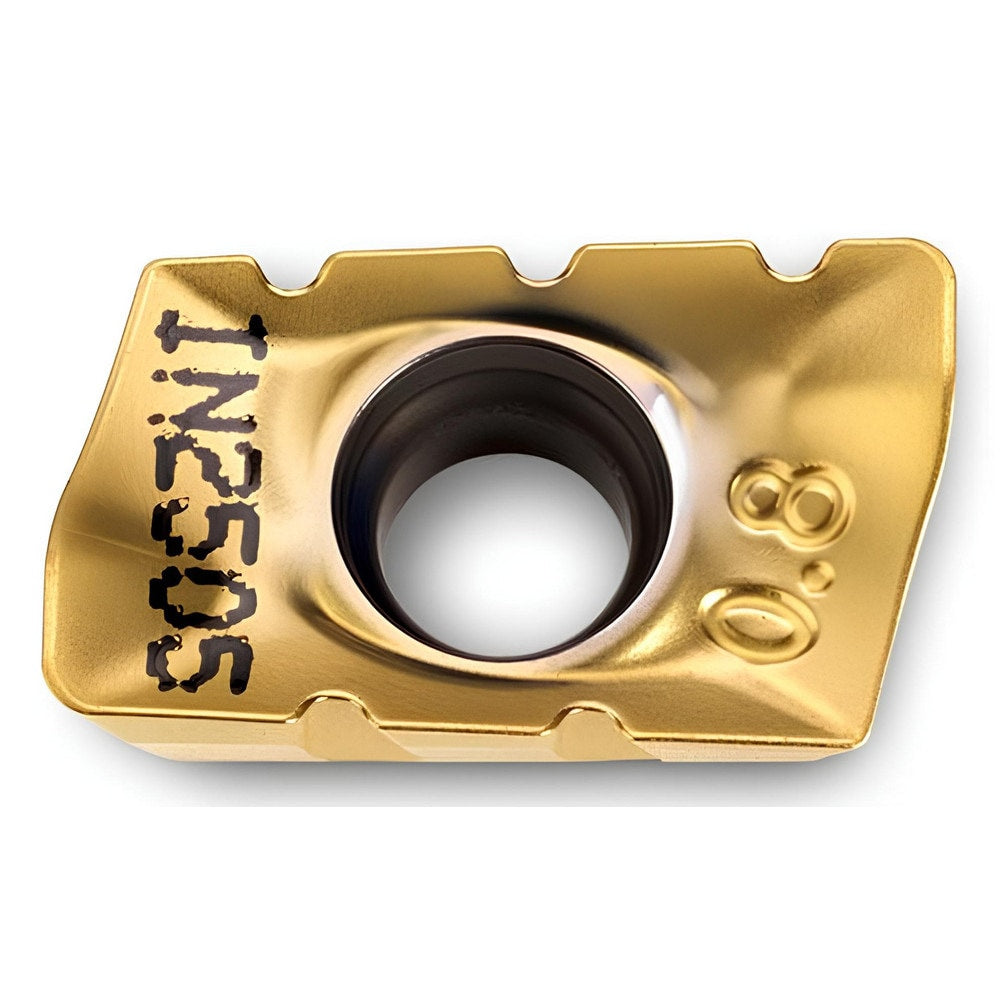

Brand: Ingersoll Cutting Tools / Part #: 6190439
Item #: 16906539
Brand: Ingersoll Cutting Tools
Model #: 6190439
Product Specifications
| Insert Style | ZOMT |
| Insert Size Code | 130408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Decimal Inch) | 0.3200 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | ZOMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4900 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | ZOMT130408R |
| Manufacturers Catalog Number | ZOMT130408R IN2505 |
| Cutter Series Compatibility | 12.1R; 22.3R2J1R |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 12.4500 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3200 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1900 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5610 |
