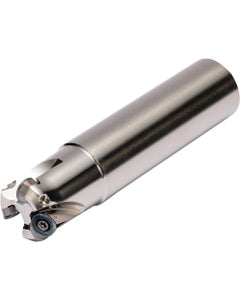

MRX 1000W100084T RAD-6 Series, Standard Length Shank, Radius End Mill
Item #: KY96THN07422
Brand: Kyocera Precision Tools
Model #: THN07422
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1″ |
| Head Length (LH) | 2.4059″ |
| Cutting Diameter (DC) | 1″ |
| Functional Length (LF) | 4.7244″ |
| Cutting Diameter Maximum (DCX) | 1″ |
| Usable Length (LU) | 0.1575″ |
| Cutting Item Count (CICT) | 4 |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.1575″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4.7244″ |
| Style | MRX |
| Shank Type | Weldon |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Series/List # | MRX |
| Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Model Number | 8608698 |
| Master Insert Identification (MIID) | RDMT0803M0ER-GM | RDGT0803M0ER-GM | RDGT0803M0ER-SM | RDMT0803M0EN-GH |
| Body Material | Steel |
| Weight of Item (WT) | 2.927 |
| Shank Length (LS) | 2.3185″ |
