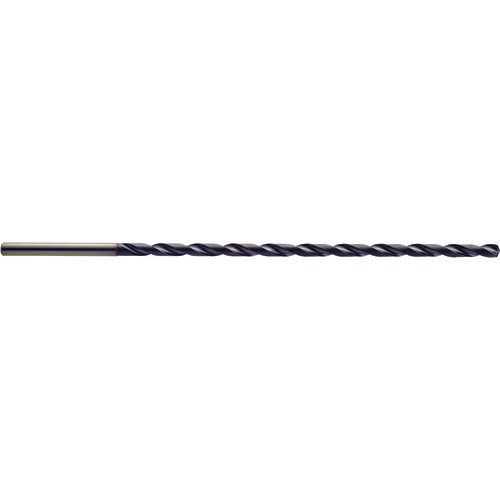

6.5 mm Dia. × 8 mm Shank × 183 mm Flute Length × 223 mm OAL, 25xD, 140°, TiAlN, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: YG14DHM25065
Brand: YG-1 Cutting Tools
Model #: DHM25065
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 6.5 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.2559″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.5 mm |
| Tool Type | CARBIDE DREAM DRILLS MQL TYPE W/ COOLANT HOLES (25XD) |
| Length Group | 25xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | DHM25 |
| Application | Steel |
| Length Chip Flute (LCF) | 183 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Overall Length (OAL) | 223 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.18 mm |
