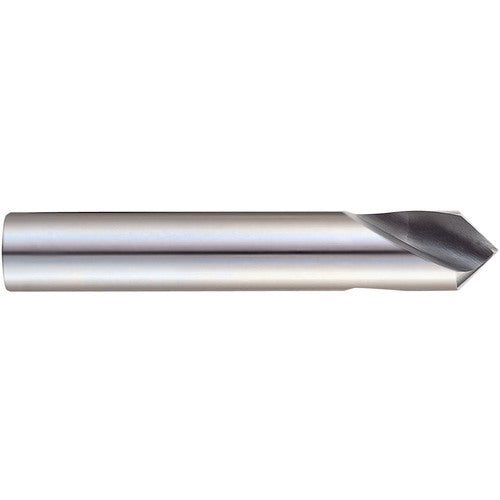

1/4″ × 70 mm OAL 90 Degree HSS Co8 Spotting Drills NC Spotting Drills Uncoated
Item #: YG180161L
Brand: YG-1 Cutting Tools
Model #: 0161L
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ |
| Cutting Edge Material | HSS Co8 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ |
| Applicable Material | Steel |
| Decimal Equivalent | 0.25″ |
| Flute Length | 17 mm |
| Angle | 90 Degrees |
| Size | 1/4″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Fractional |
| Overall Length (OAL) | 70 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Tool Type | NC Spotting Drill |
| Coating | Uncoated |
| Series/List # | D2N90 |
