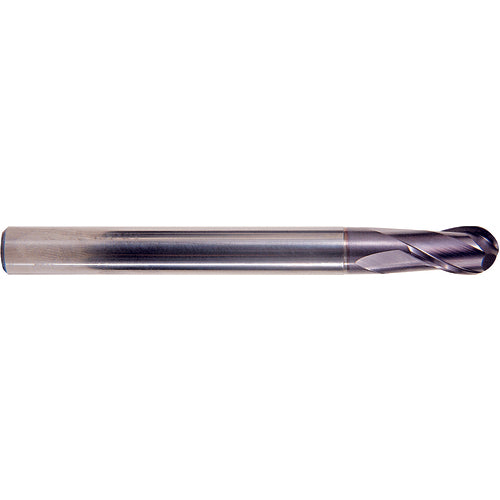

3/8 × 3/8 × 3/4(1_1/4) × 4″ X-Power 2Fl Medium Ball Nose End Mill
Item #: YG30GM961024
Brand: YG-1 Cutting Tools
Model #: GM961024
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Usable Length (LU) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Applicable Material | Steel |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Tool Type | Ballnose Endmill |
| Overall Length (OAL) | 4″ |
| Length Group | Medium |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | Y-Coating |
| Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | GM961 |
| Shank Type | Plain |
