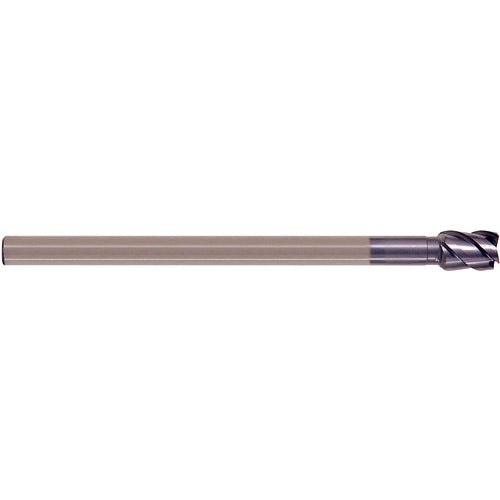

3/8(R.02″) × 5/16 × 5/8(3/4) × 5″ X-Power 4Fl 45 Degree Long Cr End Mill
Item #: YG33GM103024
Brand: YG-1 Cutting Tools
Model #: GM103024
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 5″ |
| Decimal Equivalent | 0.375″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 4 |
| Trade Name | X Power Pro |
| Flute Helix Angle (FHA) | 45 Degrees |
